The IXIRPRO Red Nozzle Set gives compatible IXIRPRO spray foam guns two directional spray options for more controlled wall and ceiling applications. Nozzle 1 creates a taller, narrower pattern for vertical surfaces, while Nozzle 2 creates a wider, flatter pattern for overhead and horizontal work. Choose the pattern that matches the direction and shape of the area before spraying.

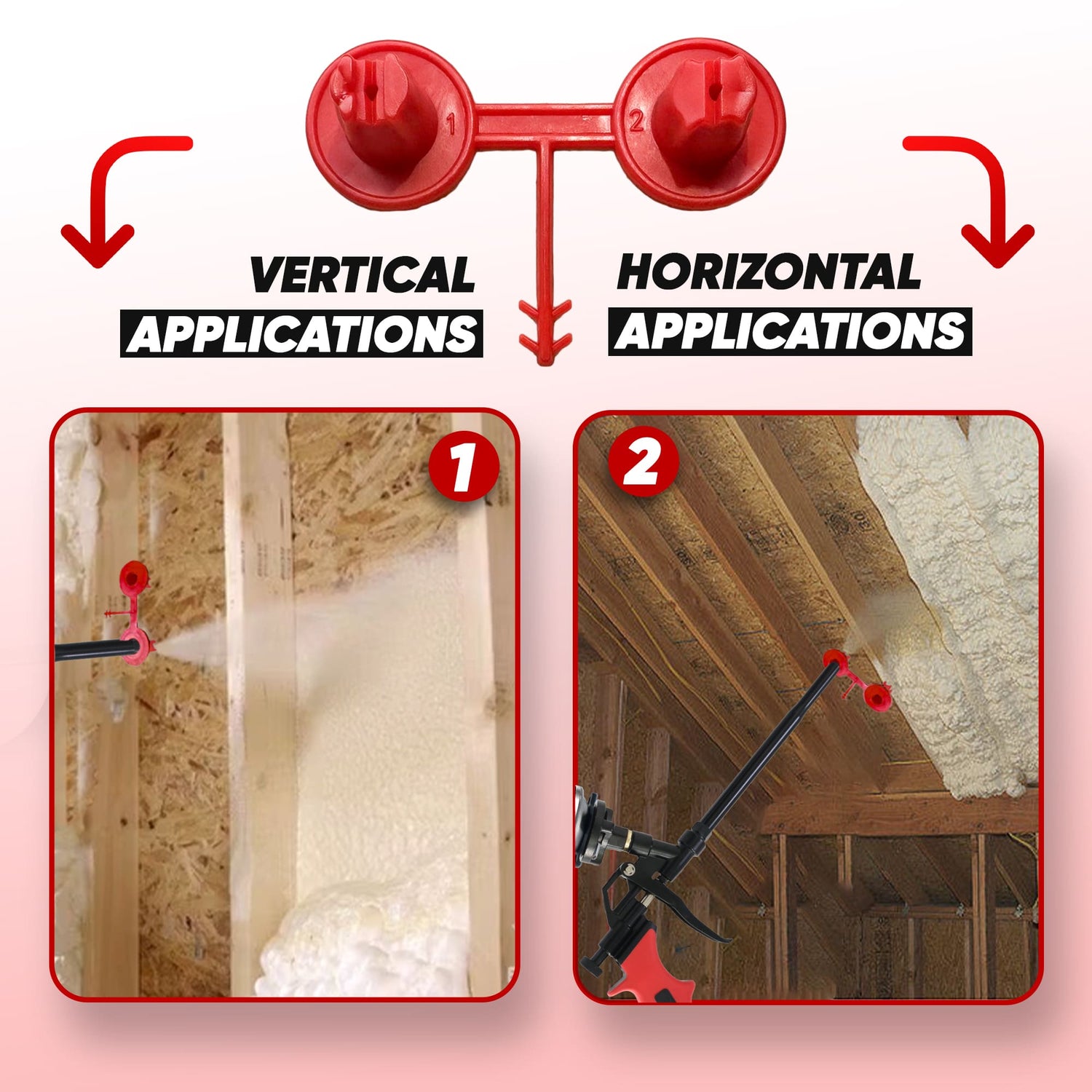

Vertical vs. Horizontal Spray Foam Nozzles
| Nozzle |
Spray pattern |
Best suited for |
| Nozzle 1 |
Tall, narrow wedge pattern |
Walls, partitions, vertical joints and upright sections |
| Nozzle 2 |
Wide, flat pattern |
Ceilings, overhead areas and broader horizontal sections |
The directional design helps place foam across the intended path more consistently than working without the appropriate directional attachment. Final coverage still depends on the foam product, gun setting, spraying distance, movement speed, surface condition and application technique.
Compatibility
These red nozzles are designed for the IXIRPRO Spray Foam Gun. They are not intended for standard metal-tip foam guns. Confirm that the nozzle is seated securely on the compatible IXIRPRO gun before beginning an application. Do not force the attachment onto a different connector.

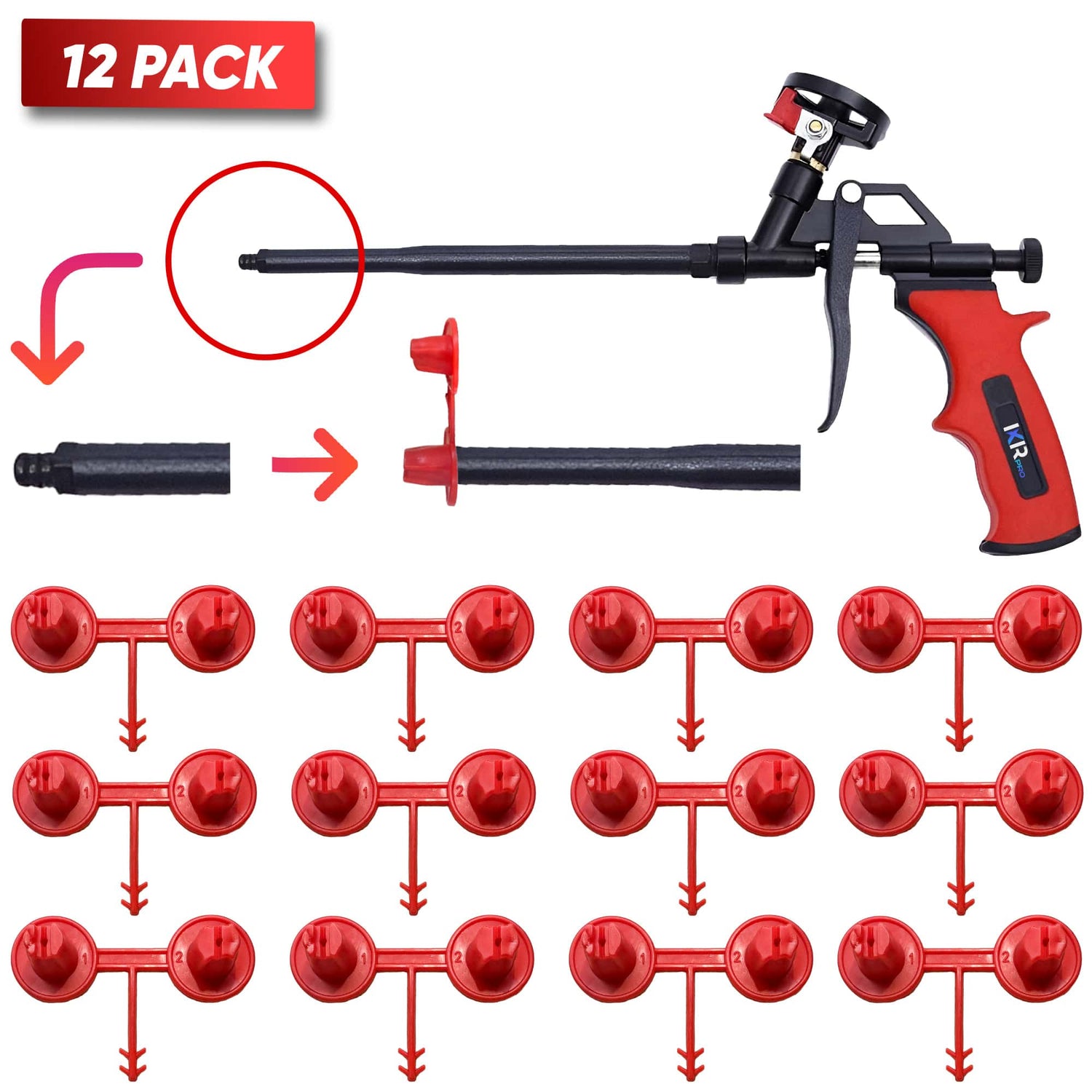

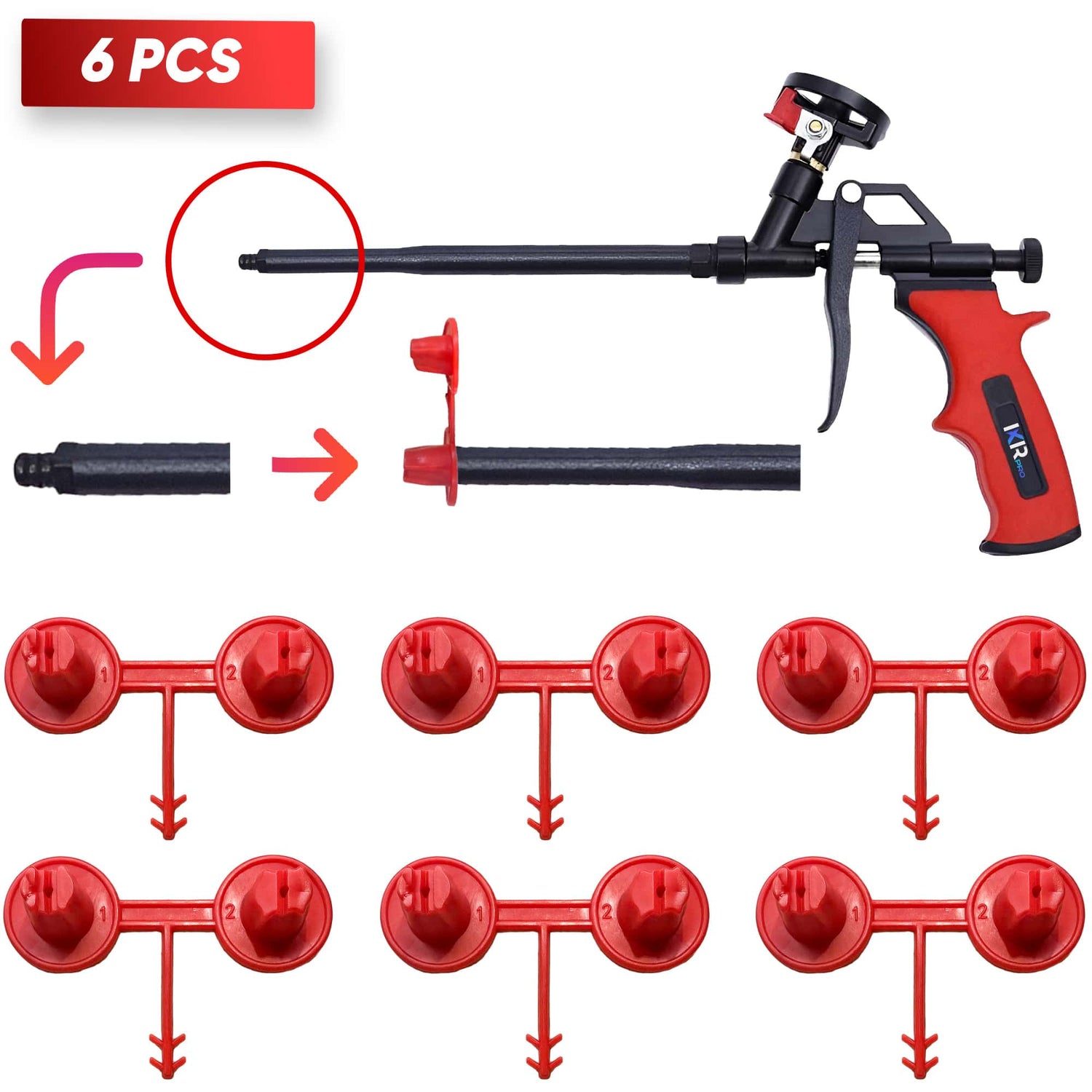

Pack Options
The product is available in 6 Pack and 12 Pack options. Each option provides the two nozzle styles needed to switch between vertical and overhead spray patterns. Select the pack size according to the number and duration of planned applications.
How to Use the Red Nozzle Set
- Prepare the work area and follow the instructions supplied with the spray foam and application gun.
- Select Nozzle 1 for vertical work or Nozzle 2 for ceilings and broader horizontal areas.
- Attach the nozzle securely to the compatible IXIRPRO spray foam gun.
- Test the spray pattern on a suitable sample area before treating the main surface.
- Keep the gun moving at a controlled pace and adjust the application according to the foam manufacturer's instructions.
Cleaning and Care
Do not allow uncured foam residue to remain in the gun after use. Remove the nozzle carefully and clean the gun with IXIRPRO Spray Foam Gun Cleaner according to the cleaner and gun instructions. Cleaner is intended for uncured residue; cured foam may require mechanical removal and should not be forced through the nozzle or gun.
Application and Safety Notes
- Follow the label, safety data and application instructions for the spray foam being used.
- Use the required personal protective equipment and provide adequate ventilation.
- Do not point the gun or attached nozzle toward people or animals.
- Test the setup before beginning the main application.
- Replace any nozzle that is damaged, blocked or does not attach securely.
Pair the Red Nozzle Set with the compatible IXIRPRO Spray Foam Gun and Gun Cleaner to build a coordinated application and maintenance setup.
